Oled screen dead on first startup Leaf 2017 80kw 30 kwh Type2 (euro) charge port

[Emanuel]

[Emanuel]

I got the (old) screen with white connectors. If that information matters.

[Emanuel]

Wheels are now turning! HV relays turning on and off with the ignition key.
I have an American J1772 charge port..NOT a Euro Type2. So the white wire is to be connected to the white.
Oled screen still dead thou. So I guess I need a replacement.
Still in a bit of euforia 🥰

[isak]

Hi @Emanuel !
If the wheels are turning now I believe you unfortunately got a bad display (we always test them before shipment but we have had a batch of bad OLEDs recently) Could you please reach out to us via email and I'll send you an new one. info@resolve-ev.com

[Emanuel]

Thanks! all is good now. The new oled screen works fine, and the little box it now came with, makes it a bit easier to mount.

[leshall89]

@Emanuel How is the little box the OLED screen came with make it easier to mount? Can you show a picture?

[Emanuel]

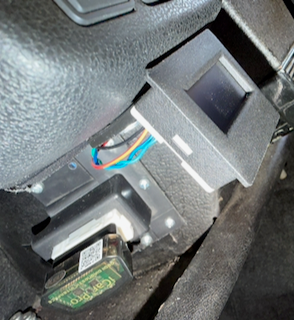

The first OLED I got was just a screen on a circuit board. The working one had a small housing around it. see picture

https://github.com/dalathegreat/Nissan-Leaf-Battery-to-OBD2

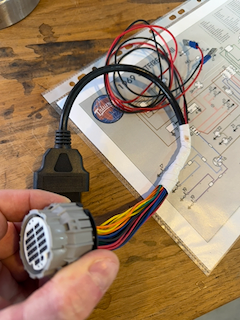

This is a link with instructions to make a cable/connector directly to the battery pack. Then you can check if the HV wiring is OK before connecting it to the Resolve-box. Here you can also find fault codes and lots of useful stuff.
link to the OBD2 plug iCar Pro that worked fine with Leafspy: https://www.amazon.se/dp/B071D8SYXN?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_1

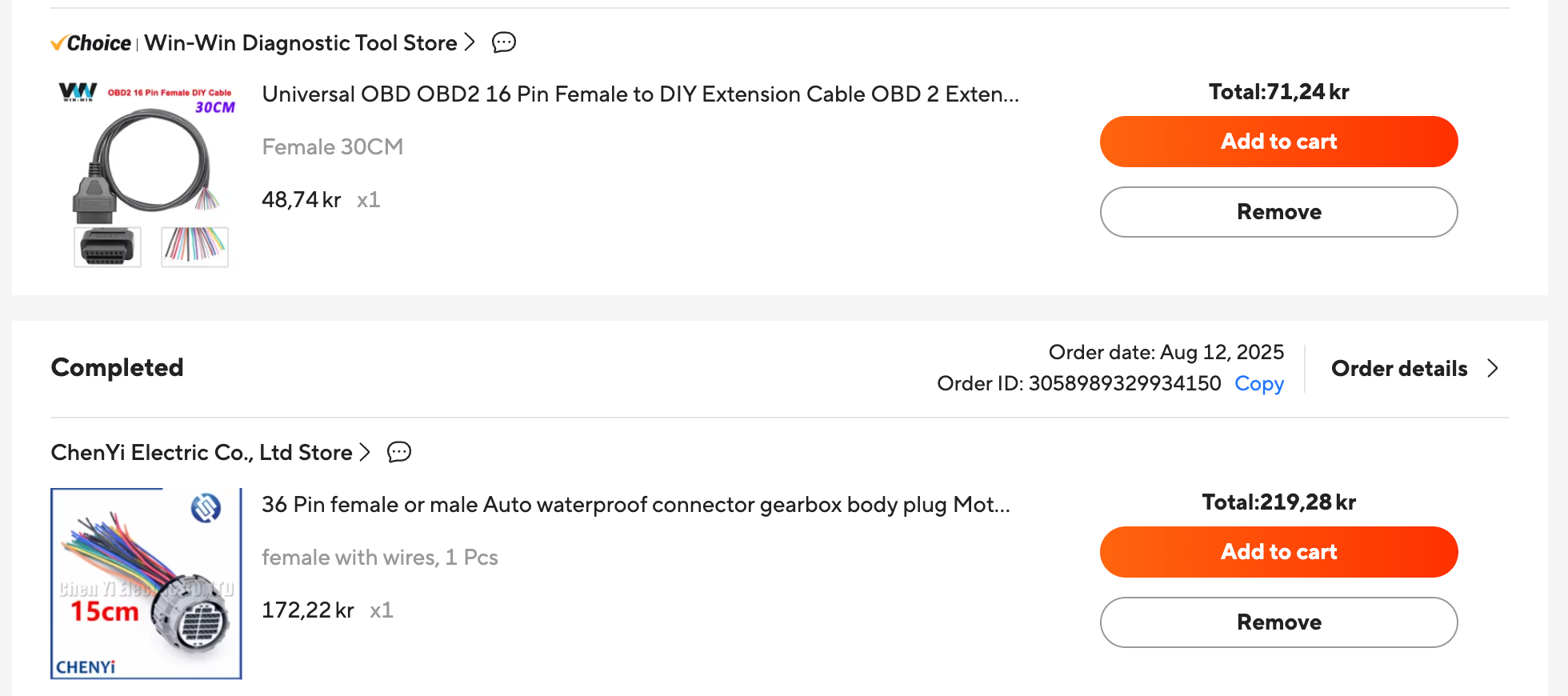

link to connectors to build cable from HV to OBD2: https://www.aliexpress.com/item/1005004180391674.html?spm=a2g0o.order_list.order_list_main.24.3b7a1802arh7UZ
https://www.aliexpress.com/item/1005004199961075.html?spm=a2g0o.order_list.order_list_main.20.3b7a1802arh7UZ

[Emanuel]

This post is deleted!

[leshall89]

[leshall89]

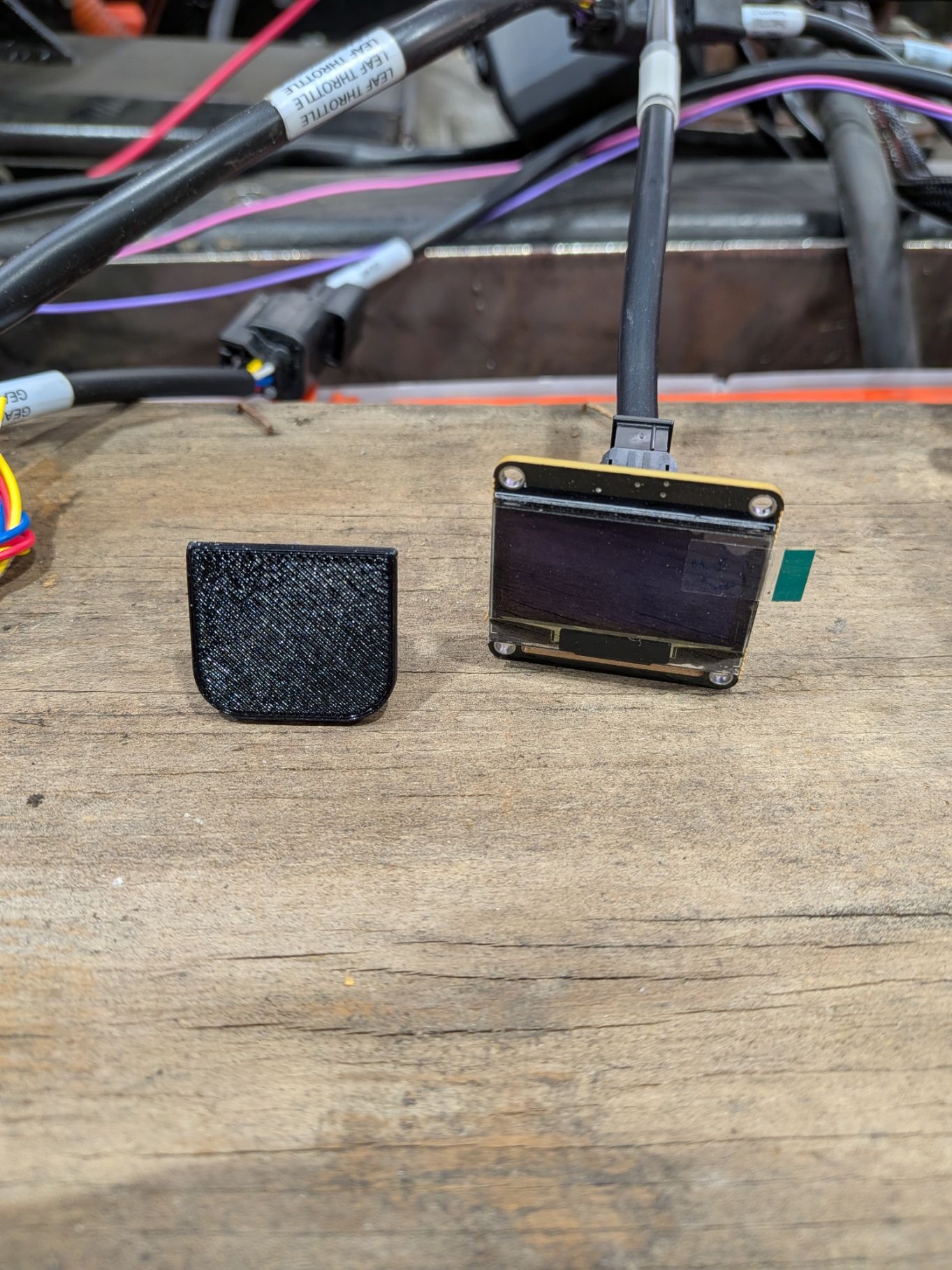

This is what came with my purchase, I have no idea what this little plastic piece is for.
