Hi , @matthewjstead @KoduEV @isak . I have installed the 62kwh Yaste kit with the Yaste CAN bridge. It works but I have an issue with the Chademo charging and regen since the upgrade. I suspect it may be a communication issue between CAN bridge and resolve EV but can't rule out a hardware issue with the OBC. I also have an issue with charging not stopping autumatically at 100% but no problem with the 85%. other then that it's fine. we be happy to hear if any one has any ideas how to Diagnose those issues and fix them? that would help a whole lot of potential resolve EV users that would like a battery upgrade.

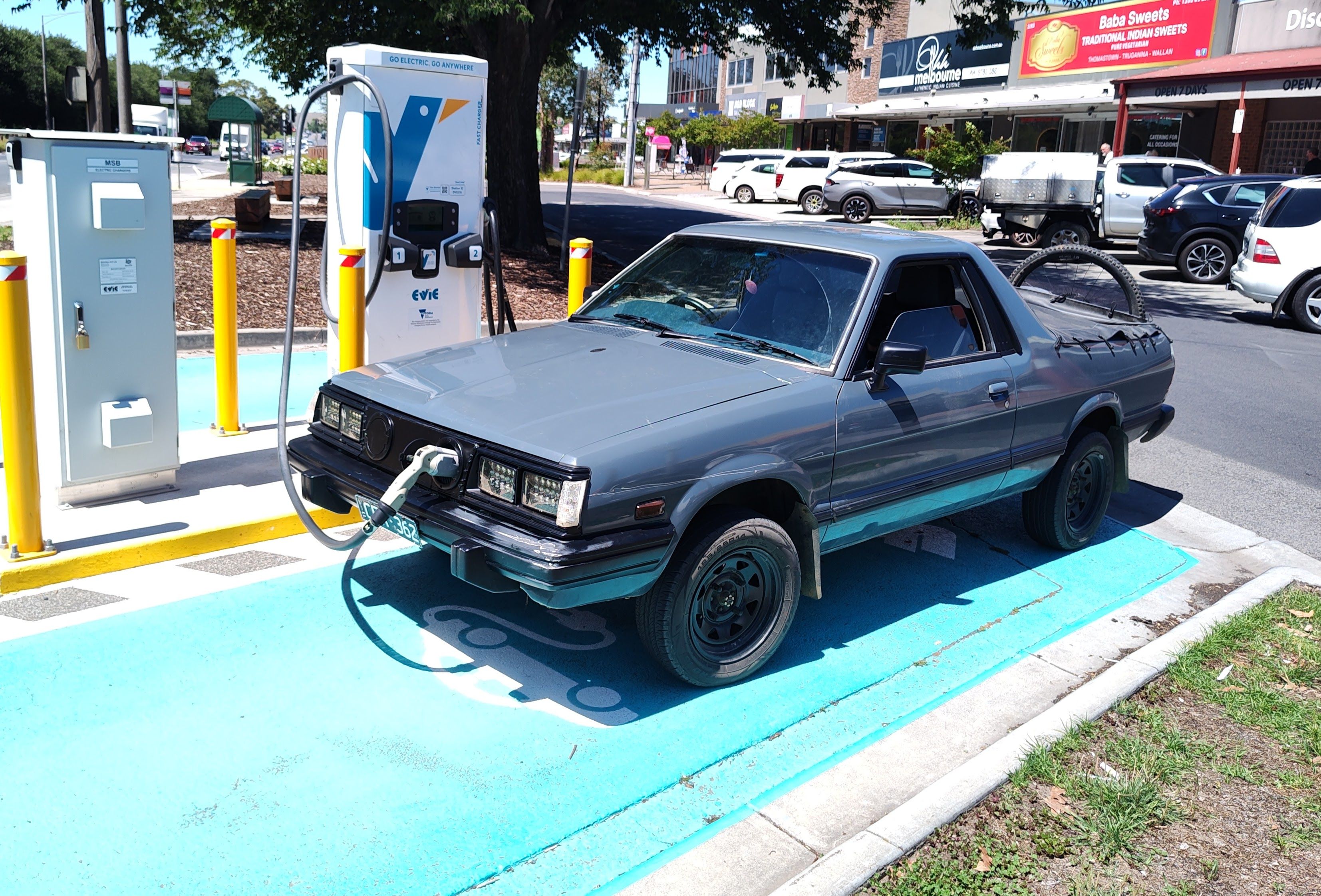

[image: 1781345884727-img_20241212_113052183-resized.jpg] 1990 Subaru Brumby EV Conversion Vehicle • 1990 Subaru Brumby • Original Subaru manual gearbox retained • Original dual-range 4WD retained • Selectable 2WD / 4WD still functions exactly as factory • High and low range both operational • Clutch deleted EV Drivetrain • Nissan Leaf motor, inverter and charger • Brat Industries adapter plate and spline coupler • Resolve EV control system • Tesla iBooster electric brake booster • Hyundai i30 electric power steering Battery System • Originally converted using a Nissan Leaf battery pack • Upgraded to a 63 kWh YASTE CATL LiFePO₄ battery • Battery installed inside the original Leaf battery case • Original Leaf BMS retained • YASTE CAN bridge used to allow communication between the battery system and vehicle controls Performance • Approximately 80 kW power output • Instant electric torque from 0 rpm • 0–100 km/h measured at approximately 9 seconds • Top speed not tested, but comfortably exceeds highway speeds Range • Estimated 300–400 km depending on driving conditions • Highway speeds, towing and off-road use will reduce range Off-Road Ability • Original Subaru dual-range transmission retained • Original selectable 4WD retained • Low range still available • Instant electric torque works exceptionally well off-road Weight • Current estimated vehicle weight around 1,285 kg • Final certified weight still to be confirmed Charging • AC charging operational • DC fast charging hardware installed • Solar charging compatible Current Issues Like any custom EV conversion, there are still a few things being worked through. • Regenerative braking is currently not functioning correctly • CHAdeMO fast charging is currently not functioning correctly • The cause may be related to either the Nissan PDM or the YASTE CAN bridge • Investigation is ongoing and I'll post updates as I learn more Conversion Cost Approximately $30,000–35,000 AUD for the EV conversion itself, including battery, drivetrain components, engineering, fabrication and electrical systems. Why Convert It? The goal wasn't to build the fastest EV. The goal was to keep everything that makes a Brumby a Brumby—dual-range gearbox, selectable 4WD and practicality—while giving it modern EV reliability, performance and range. It's still very much a development project, but it's now a fully drivable electric Brumby that retains the character and capability of the original vehicle.

Since April 8th it's back to the road! [image: 1780514460331-img-20260408-wa0001-resized.png] Everything works fine. It drives great. And I have to say thanks to Isak for the great resolve EV conversion kit! With the 40kWh battery pack the range is about 200-250km when driving in the city.

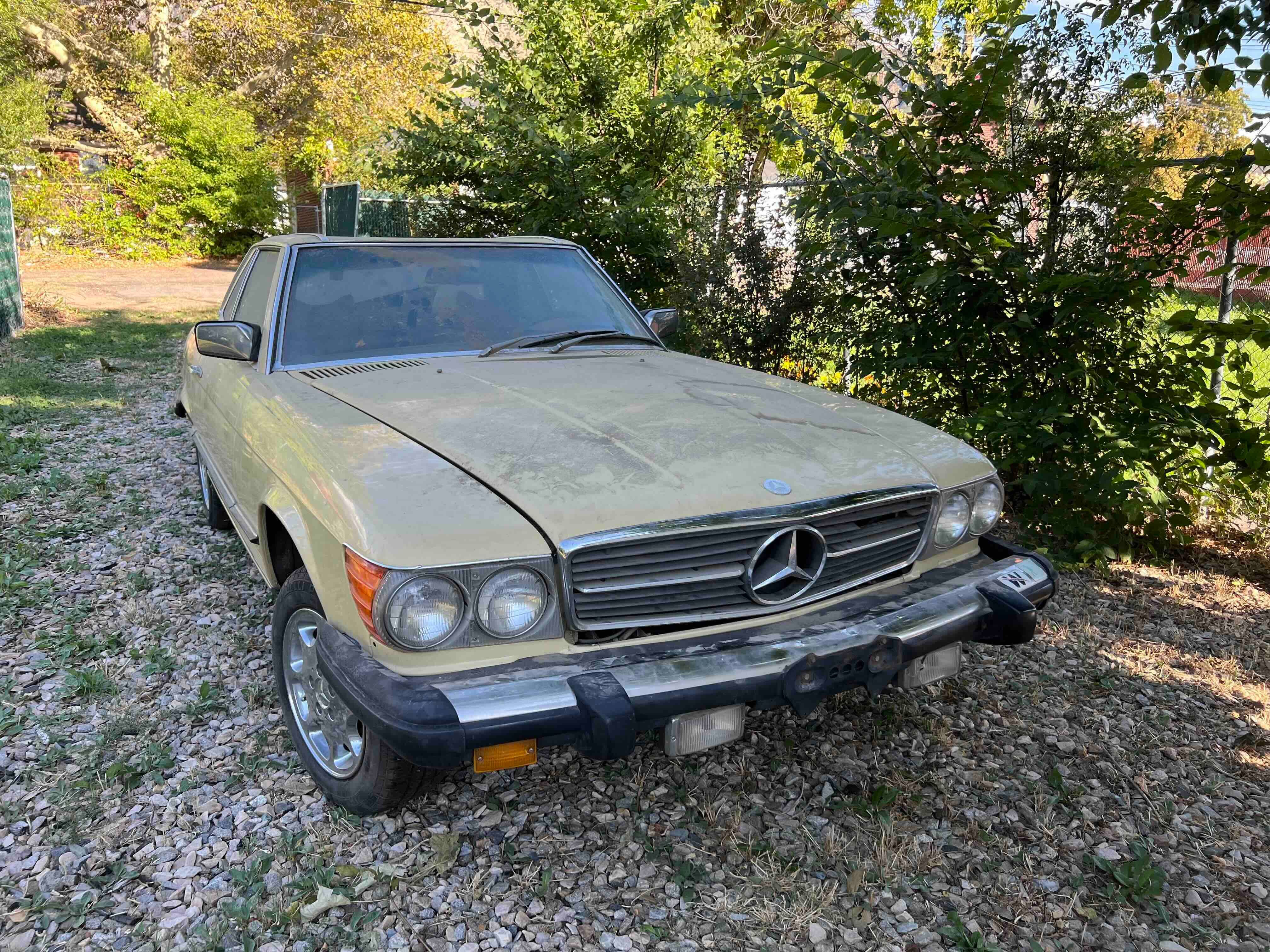

Sick mercedes. I love a good wagon. Best of luck with the conversion!

+1 on this. Cruise control integration would be awesome.

As the little suggests i have a intermittent fault with my resolve oled screen. I've gone through everything a good few times to diagnose it, but cant figure it out. Sometimes the splash screen comes up and it works fine, sometimes nothing. I cant predict it or do anything to cause the fault. Its pure luck as to when it chooses to work. All 4 wires are connected and wired correctly. 2 can wires, 1 negative and 1 live from the resolve ECU. When its working and not working all wiring, continuity and voltage remains correct. Im not using any none-leaf none-resolve can components. Just the Resolve ecu, oled and then leaf bms, inverter, pdm etc. Has anyone experienced this and have you found a solution? @isak

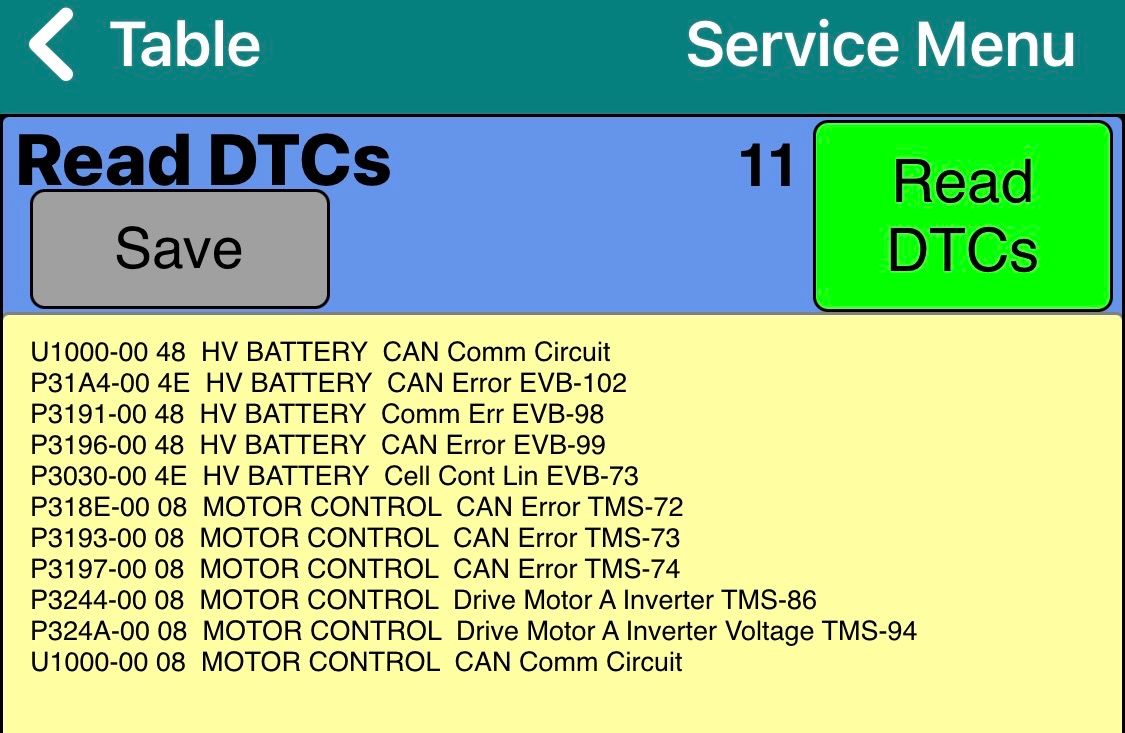

Finally got the wheels turning, LeafSpy connected for long enough to do some DTC fault finding. Errors reported as expected when disconnecting different parts of the system, only when the inverter was disconnected no change in DTC. So I checked the inverter connector for continuity and there was a wire break on the ground. Nice easy solution despite lots of investigation. Time to find space for the batteries. [image: 1779097377591-screenshot-2026-05-18-103600.png] [image: 1779097377891-screenshot-2026-05-18-103919.png]

Something to investigate - the version of OS on your device. This occurred to me before but I thought I’d covered it because I’ve always used 2 different devices iphone and iPad. iPhone is 26.4.2. iPad is 18.7.9. Since they were different but both failed to connect I put aside that idea. But this morning I dug out an old smashed screen iPhone running 15.8.4 and it connected first time after I turned Bluetooth off / on. A couple more tries and still worked. This is not a comprehensive proof of anything. It might just be lucky coincidence. I’m out for a while now, but if it regularly connects when I get back home for more testing, it’s the start of identifying the root cause.

Hi Everyone, I have a 30ft classic launch which until now has run on diesel, I am pulling that out and repowering with a Nissan Leaf system, and 62kWh battery, and using the Resolve Marine Controller and Wiring Loom. Has anyone done a similar conversion anywhere? I am really struggling to find someone who has done it before, certainly not here in NZ. Look forward to hearing from anyone, regards, Di

Thanks! The batteries are modules from 24kwh pack. Purchased both as-is from another ev conversion builder who had already reformed the modules into what I am calling two sets that you see in my pictures. For each set I have a large set bms bus bar orange thing. To make this work I had to do some rewiring of the bms harness which involved re-pinning the connectors. I was able to locate and find connectors (Mouser) similar to what nissan used in the original bms harness. I purchased the little pins (both male and female) along with a crimper. Now the bms control module sees the same modules as it did when the configuration of modules came out of the pack. My next work is to create an "extension cord" that will allow both battery sets to lie end-to-end like you see in the photo. I have pinout diagram I drew that might help anyone that wants to do same thing I can share if interested and/or can put up photos.

@isak, I have a 52 second video of the GE Jeep maiden voyage I'd like to post (16.5MB). Is this possible?

Now I have to get a 3D printer...

Holy crap that is cool, well done and fun!!!

@isak - another week goes by. Please advise on status of replacement display.

In the later stacks the logic for Chademo was moved from the pdm to the cars vcu so it won't work

@isak please could you advise any extra steps I could try like clearing/manual resetting the microcontroller to enable connection, or if any of the configuration solder links might affect connection? Alternatively I have access to an electronics lab if you could guide me through firmware update using JTAG/Atmel studio if this is an option. My soldering should be good enough if this is possible. I would also be happy to trade my controller in for a micro-usb or usb-c model. Thank you

Very nice!

I am not sure if the compressor has HVB+ and HVB- going to it all the time. or if it has some contactors in the PDM that turn on with LIN control as well. have to pull the PDM open and see... I do know that the PTC heater has HVB+ and HVB- whenever the Main contactors are closed. so probably the same with the A/C compressor.

This is what came with my purchase, I have no idea what this little plastic piece is for.

Are you using the Resolve plug and play wiring harness? I am and I can't get my motor to spin, getting a 206 error code I can't "Resolve". What are your thoughts?
